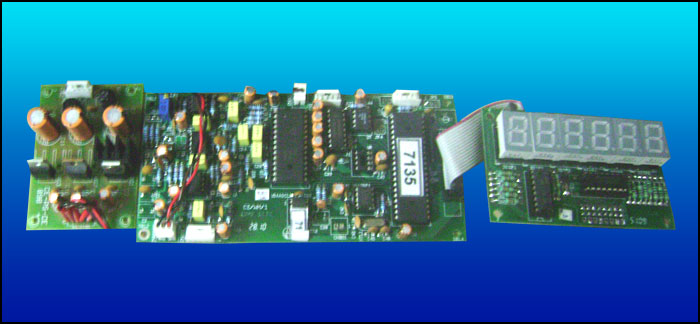

| Weighing PCB >> PCB Type RTC (7135) |
 |
| Micro Controller |
89C52 |
| ADC |
7135 |
| Internal Counts |
4 ½ Digit. 40,000 (-20,000 TO +20,000) |
| External Counts |
< 30,000 |
| Sampling Rate |
‘3’ Samples per second. |
| EEPROM |
93C46 |
| Display |
Encoded – 6 digits 7 Segments – LED. |
| Amplifier Stage |
3 |
|
| |
| Application : |
|
- Normal Weighing (Power Up Zero).
- Hopper / Tank Weighing (Power Up Actual Weight Display)
- Peak / Hold Indication.
- Weigh Bridge Indicator
- Lit / Kg Facility
- Single Display Piece Counting.
- Level Controller (Up to 5 level)
- Filling Controller (Fine / Coarse / Tolerance Adjustment)
- Batching Controller (Multiple Ingredients)
- Thermal Printer Interface.
- LCD / Real Time Clock / VFD … Interface Options.
- RS232 Computer Interface / RS 485 Interface.
- PLC Compatible 0-10VDC or 4-20mA Current O/p.
|
| |
|
|
 |
