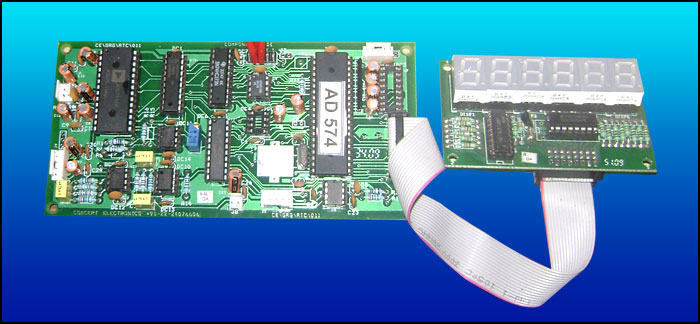

| Weighing PCB >> PCB Type 574 |
 |
| Micro Controller |
89C52 |
| ADC |
AD 574 |
| Internal Counts |
8192 Counts ( 0 to 8192) |
| External Counts |
< 8,000 |
| Sampling Rate |
‘1000’ Samples per second. |
| EEPROM |
93C46 |
| Display |
Encoded – 6 digits 7 Segments – LED |
| Amplifier Stage |
3 |
|
| |
| Application : |
|
- Normal Weighing (Power Up Zero).
- Peak / Hold Indication Very fast Action.
- Level Controller (Up to 5 level)
- Filling Controller (Fine / Coarse / Tolerance Adjustment)
- Batching Controller (Multiple Ingredients)
- RS232 Computer Interface / RS 485 Interface.
- PLC Compatible 0-10VDC or 4-20mA Current O/p
|
| |
|
|
 |
