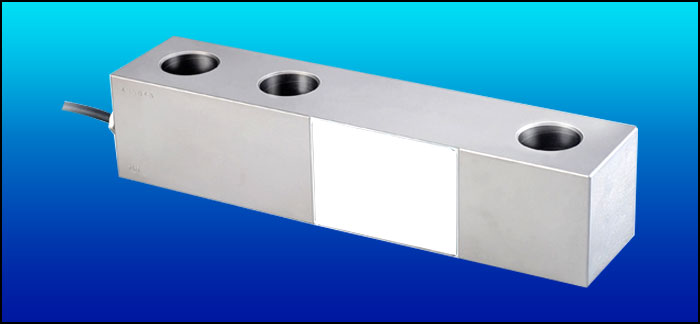

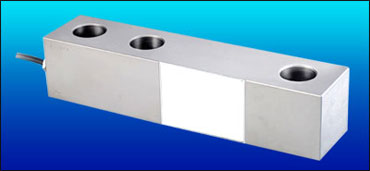

| Single Ended Shear Beam >> CEL 803 |
| Description : |
| This is a Strain Gage based, single ended Shear Beam Load Cell. Intended for use in platform scales, tank and hopper weighing systems. It is constructed from high alloy tool Steel. The cell is sealed against moisture ingression for use in wash-down areas and it is Electroless Nickel plated for corrosion resistance. It is low cost ideal Load Cell for industrial automation applications. |
|
 |
| |
| Performance Specification |
| Standard Capacities |
100*, 150*, 200*, 300,500*, 750 - Kgf
1, 1.5, 2, 2.5, 3, 5, 7.5, 10 - Tf |
| Excitation Voltage |
10 VDC- Maximum
15 VDC |
| Nominal Output |
3.0 m V/ V |
| Non - Linearity |
< ±0.025% FSO |
| Hysteresis |
< ±0.02% FSO |
| Non-Repeatability |
< ±0.01% FSO |
| Creep (30 minutes) |
< ±0.03% FSO |
| Zero Balance |
±1.0% FSO |
| Input Resistance |
390 ± 3.5 Ohms |
| Output Resistance |
350 ± 3.5 Ohms |
| Insulation Resistance (50 VDC) |
> 1000 Mega
Ohms |
| Cable Length (4 Core Screened) |
5 mtr. Minimum |
| Safe Overload of Rated Capacity |
150% |
| Ultimate Overload of Rated Capacity |
300% |
| Side Load Discrimination |
500 : 1 |
| Temp. Compensated Range |
0-60 0C |
| Deflection |
< 0.5 mm at FSO |
| Tightening Torque |
See table below. |
| Finish & Construction |
803 - Electroless Nickel Plated Tool Steel |
| Environmental Protection Class |
IP67. |
|
| |

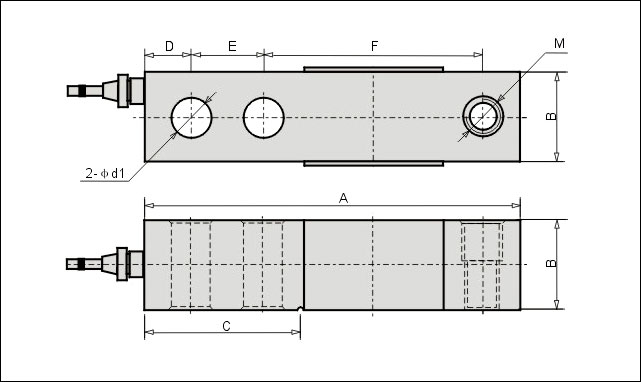

Load (Kg) |
A |
B |
C |
D |
E |
F |
d1 |
M |
500 ~ 2000 |
130 |
31.8 |
54.5 |
16.1 |
25 |
77.2 |
13 |
M12 x 1.75 |
2500 ~ 5000 |
172 |
38 |
74.5 |
19.7 |
38 |
95.2 |
21 |
M20 x 2.5 |
|
| |
|
| |
|
| |
|
|
 |
