  Load Cell

  Compression >> ADI 90210
Description :

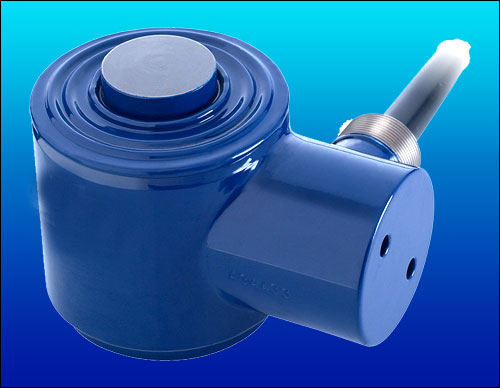

Model 90210 is a Strain Gage based, multicolumn compression type of Load Cell. It is hermetically sealed to provide better environmental protection. The cell is recommended for tank, truck, track and hopper type industrial applications. The cell is supplied with an integral 20 meter cable.

Performance Specification
Standard Capacities 5, 7.5, 10, 15, 20, 23, 30, 45, 75, 100 - Tf
Excitation Voltage 20 VDC- Maximum 15 VDC
Nominal Output 2.0 mV/ V
Non - Linearity 90210 - < ±0.15% FSO
90310 - < ±0.025% FSO
Hysteresis < ±0.03% FSO
Non-Repeatability < ±0.02% FSO
Creep (30 minutes) < ±0.03% FSO
Zero Balance ±1.0% FSO
Input Resistance 450 ± 2.0 Ohms
Output Resistance 480 ± 7 Ohms
Insulation Resistance (50 VDC) > 1000 Mega Ohms
Safe Overload of Rated Capacity 150%
Ultimate Overload of Rated Capacity 300%
Allowable Side Load 10%
Temp. Compensated Range 0-60 0C
Temperature Effect on Output < 0.0015% FSO/ 0C
Temperature Effect on Zero < 0.0020% FSO/ 0C
Deflection < 0.4 mm at FSO
Finish & Construction Epoxy Enamel
Environmental Protection Class IP68

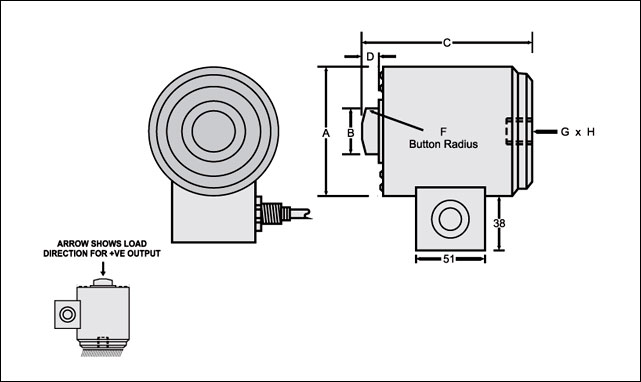

CAPACITY
A
B
C
D
E
F
G
H
Cable Length Mtrs.
5 to 30
73
32
82
8
39
150
M12 X 1.25
8
20
45
114
58
127
12.5
62
150
M20 X 1.50
20
20
75 to 100
140
80
184
26
87
430
M20 X 1.50
19
20
