| Transducers >> ADI 30510 |
|
| |
| Features |
 0.5 Tf to 7.5 Tf capacities load cells are offered for rope tension ranging from 1 Tf to 50 Tf |
| Complete environmental protection IP-65 class. |
| Standard output 1.0mV/V available |
| can be provided to accommodate multirope applications - up to 4 ropes |
|
| |
| Applications |
| Elevator load monitor |
| Specially designed for protecting cranes and hoists from overload. |
| Tension measurement in stay ropes, suspension ropes and railway catenary ropes. |
| Vehicle pull test. |
| Ship Bollard pull test. |
|
| |
| Description |
| This is used in industrial applications where the tension in wire rope needs to be carefully and continuously monitored and prevent overload. |

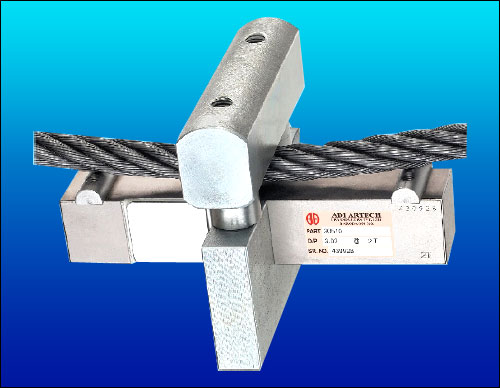

| The load cell is conveniently clamped-on to the rope in existing condition. |
| Designed to handle rope dia from 8mm to 80mm. |
|
| |
| Performance Specification |
| Standard Capacities |
0.5, 1, 2, 3, 5, 7.5 |
| Excitation Voltage |
10 VDC- Maximum
15 VDC |
| Nominal Output |
1 m V/ V |
| Non - Linearity |
< ±5.0% FSO for range upto 20%
< ±2.0% FSO for range above 20% |
|
| |
 |
| |
|
|
| |
|
|
 |
