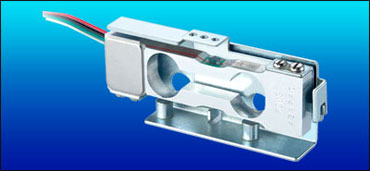

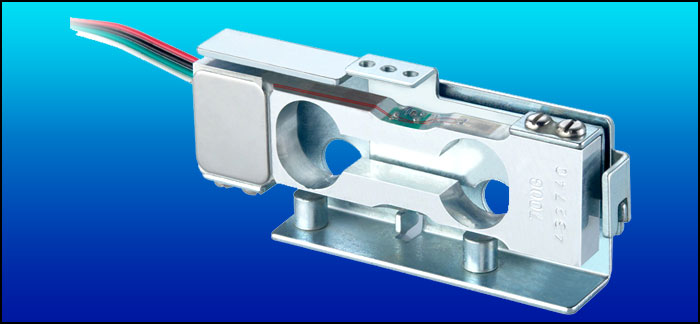

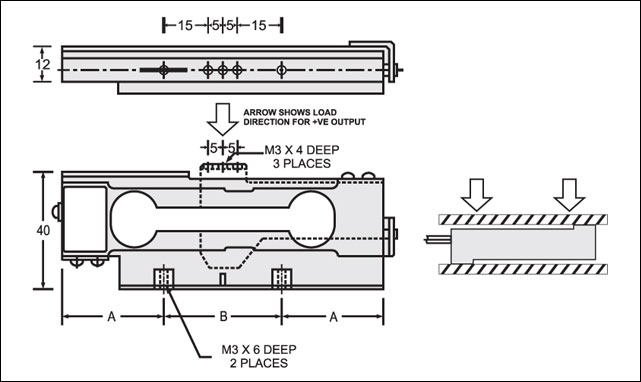

Model ADI 60610 is a Strain Gage based low profile bending beam Miniature Load Cell and is ideal for Table Top & Jewellery Scales. It is designed for low eccentric load sensitivity. It is provided with mechanical over load & under load protection mechanism.
Performance Specification
Standard Capacities
100, 200, 400, 500, 700 - Gmf 1,1.5, 2 - Kgf
Excitation Voltage
10 VDC- Maximum
15 VDC
Nominal Output
1.6 mV/ V
Non - Linearity
< ±0.025% FSO
Hysteresis
< ±0.02% FSO
Non-Repeatability
< ±0.01% FSO
Creep (30 minutes)
< ±0.03% FSO
Zero Balance
±5.0% FSO
Input Resistance
420 ± 15 Ohms
Output Resistance
350 ± 3 Ohms
Insulation Resistance (50 VDC)
> 1000 Mega
Ohms
Cable Length (4 Core Screened)
300 mm. Minimum
Safe Overload of Rated Capacity
150%
Ultimate Overload of Rated Capacity
200%
Temp. Compensated Range
0-60 0C
Platter Size
120mm dia.
Eccentric Load Effect
< 0.02% of FSO at 1/3 rated load placed
within the specified sized platter
