  Load Cell

  Weigh Bridge >>Sensortronics 65058
Description :

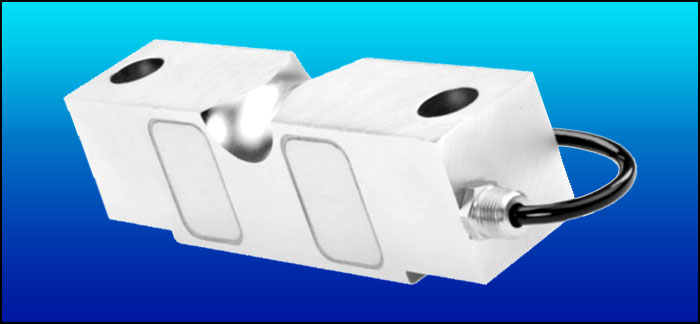

The 65058 is a mid to high capacity, nickel plated alloy steel, double ended Shear beam load cell. This product is designed for use in certified truck and rail scales and is available in capacities ranging from 10K to 200Klbs. This load cell is rated intrinsically safe by the Factory Mutual System (FM); making it suitable for use in potentially explosive environment. This load cell is certified for legal for trade applications by both American NTEP and International OIML standards.

Performance Specification
Standard Capacities 5,10,15,20,23,30,40,50,75,100 - Tf
Excitation Voltage 10 VDC- Maximum 15 VDC
Nominal Output 3.0 mV/ V
Non - Linearity < ±0.025% FSO
Hysteresis < ±0.02% FSO
Non-Repeatability < ±0.01% FSO
Creep (30 minutes) < ±0.03% FSO
Zero Balance ±1.0% FSO
Input Resistance 770 ± 20 Ohms
Output Resistance 700 ± 7 Ohms
Insulation Resistance (50 VDC) > 1000 Mega Ohms
Safe Overload of Rated Capacity 150%
Ultimate Overload of Rated Capacity 300%
Allowable Side Load 50%
Side Load Discrimination 500:1
Temp. Compensated Range 0-60 0C
Temperature Effect on Output < 0.0015% FSO/ 0C
Temperature Effect on Zero < 0.0020% FSO/ 0C
Deflection < 0.5 mm at FSO
Tightening Torque 10 m.kg.
Finish & Construction Electroless Nickel Plated Tool Steel
Environmental Protection Class IP68
